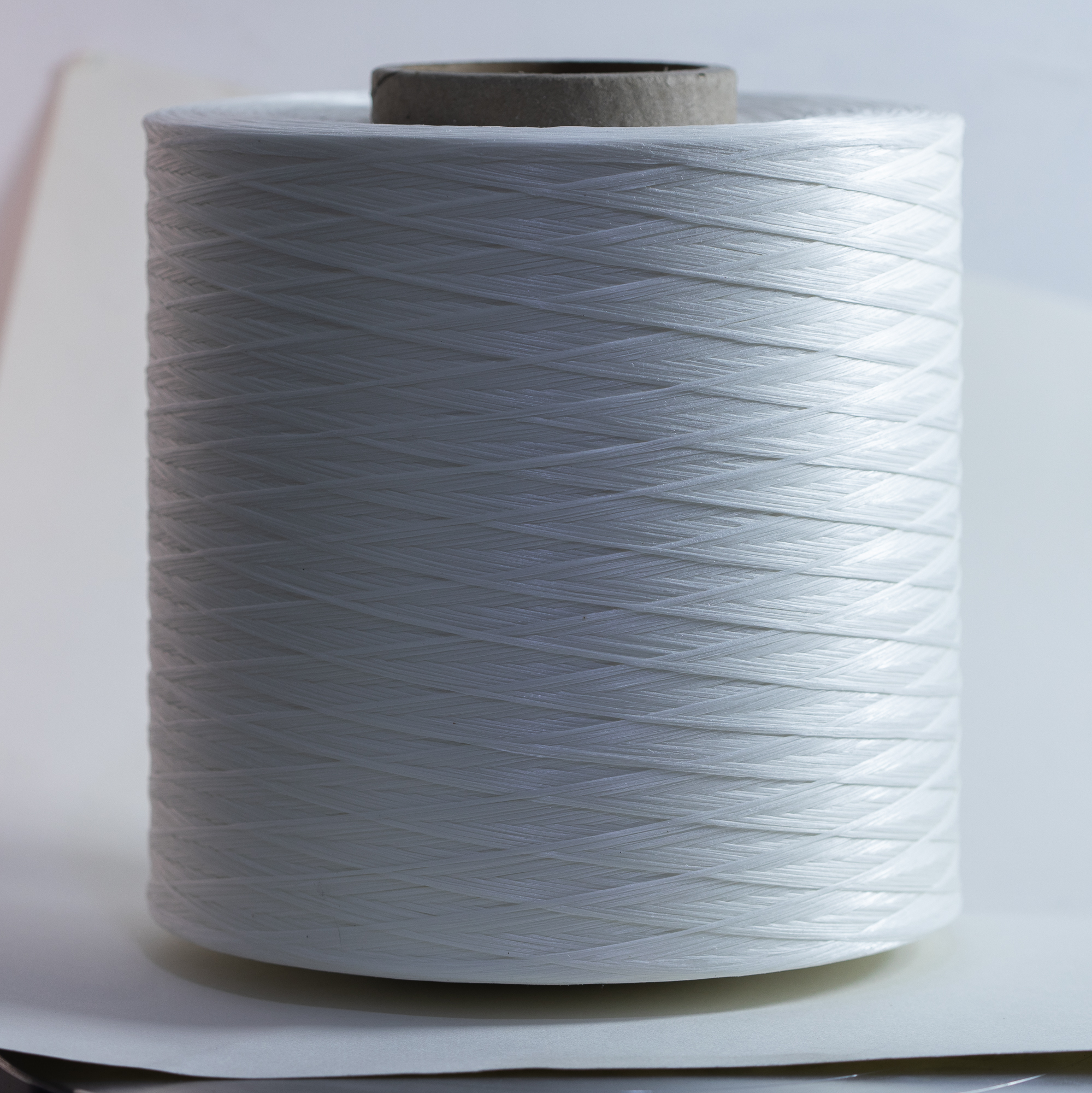

Water Blocking Yarn
Product Code
ZSH30, ZSH45, ZSH60, ZSH100, ZSH200
Construction
Polyester yarn with water-blocking coating
Applications
Inside the conductor of power cable for conductor water blocking purposes
Between components of an optical fibre cable for water blocking purposes
Characteristics
Excellent swelling performance
Proven long-term and short-term stability
Reach and RoHS compliant

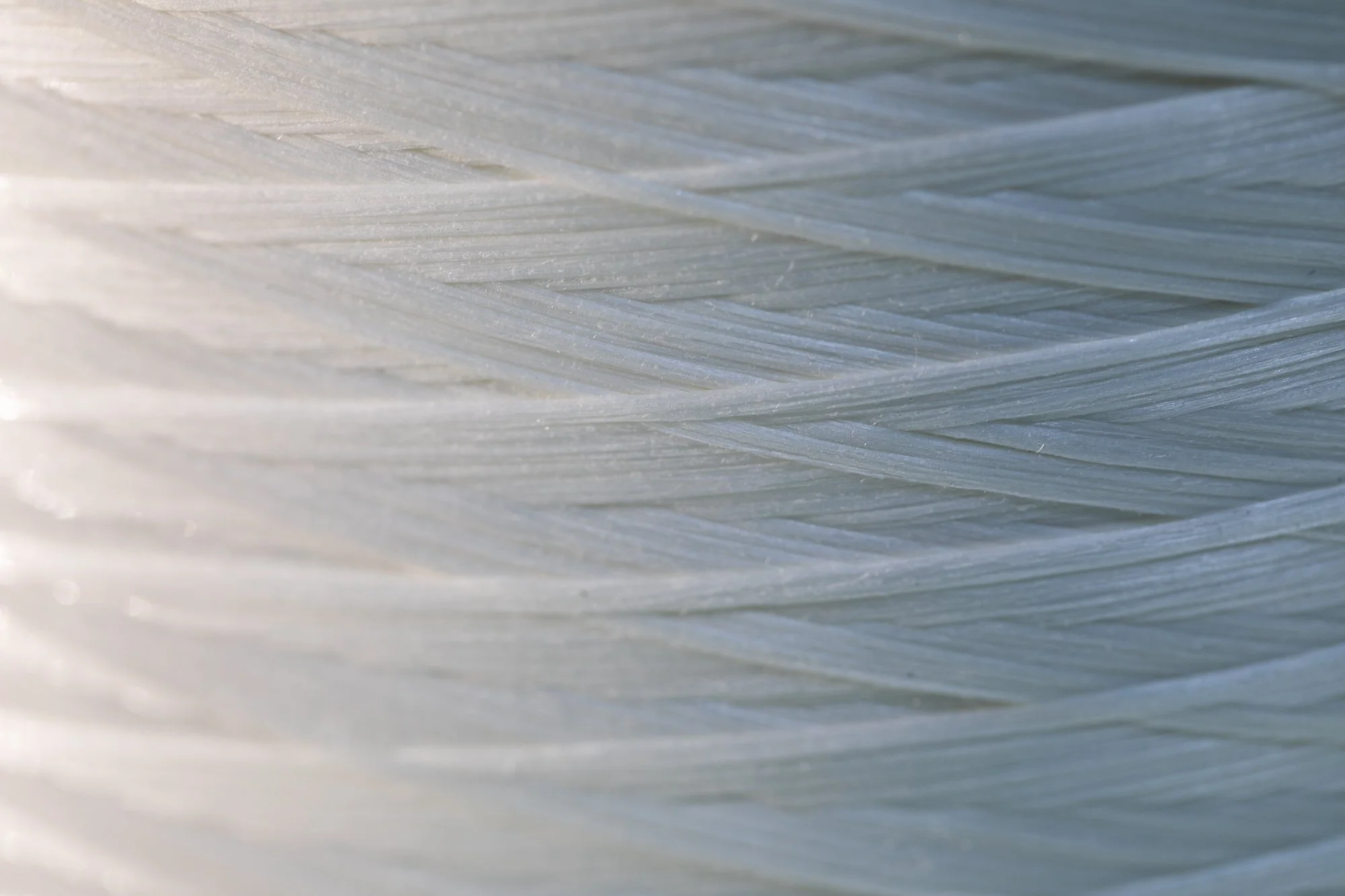

Water Blocking Yarn
Product Code
ZSH3.5, ZSH5, ZSH10, ZSH25
Construction
Polyester yarn with water blocking coating
Applications
Inside the conductor of a power cable for conductor water blocking purposes
Characteristics
Excellent swelling performance.
Proven long-term and short-term stability.
Reach and RoHS compliant

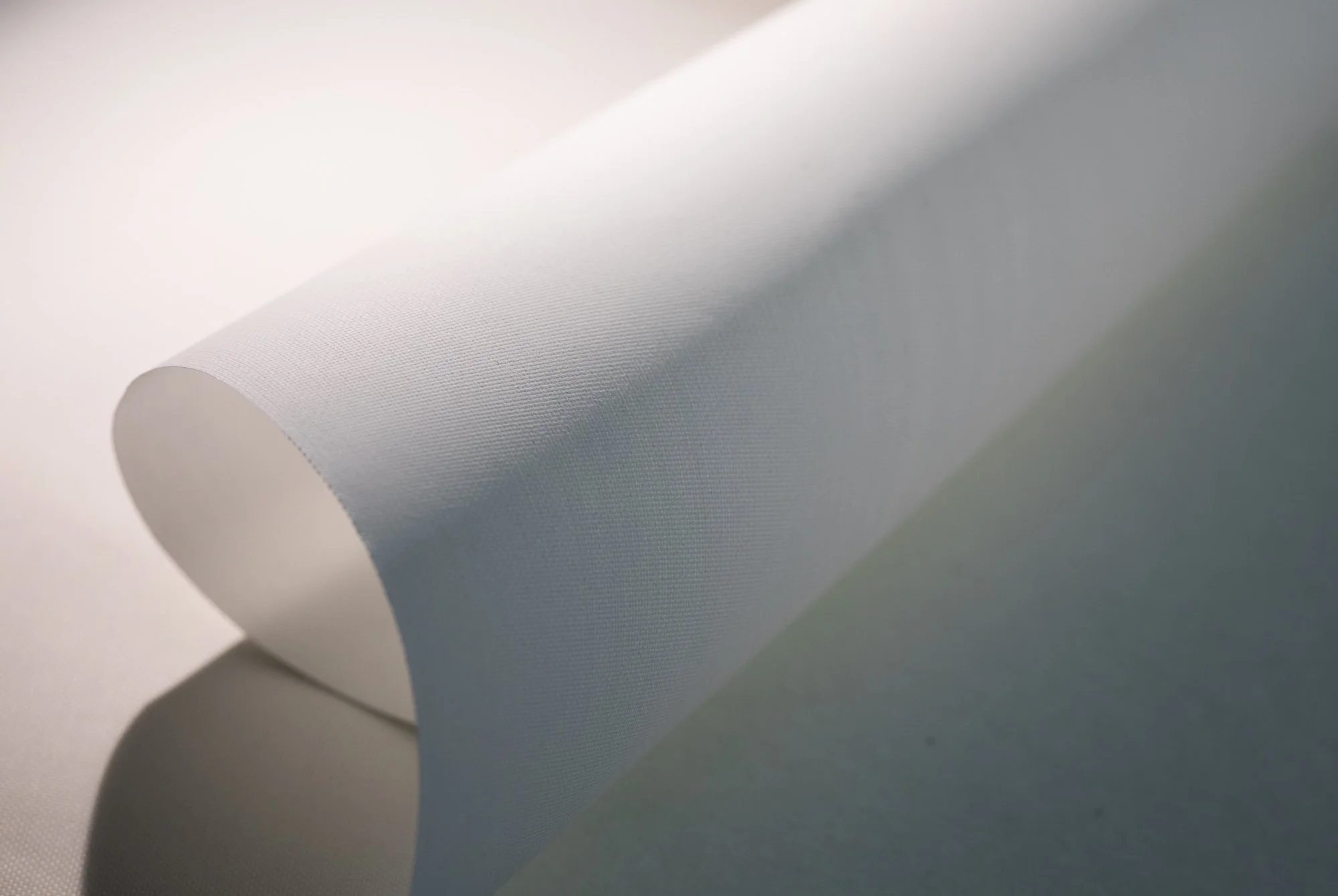

Low Smoke Halogen Free Flame Retardant Tape
Product Code
ZRD130, ZRD180
Construction
Glass fibre coated on both sides with low smoke, halogen-free, and flame-retardant compound
Applications
In control cables, mining cables and indoor building wires for bedding, binding and separating purposes
Characteristics
In low-smoke halogen-free power cable.
In optical fibre cable as binding tape.
Retardant to flame; low-smoke in fire; no halogen.
Process-friendly.
Reach and RoHS compliant.

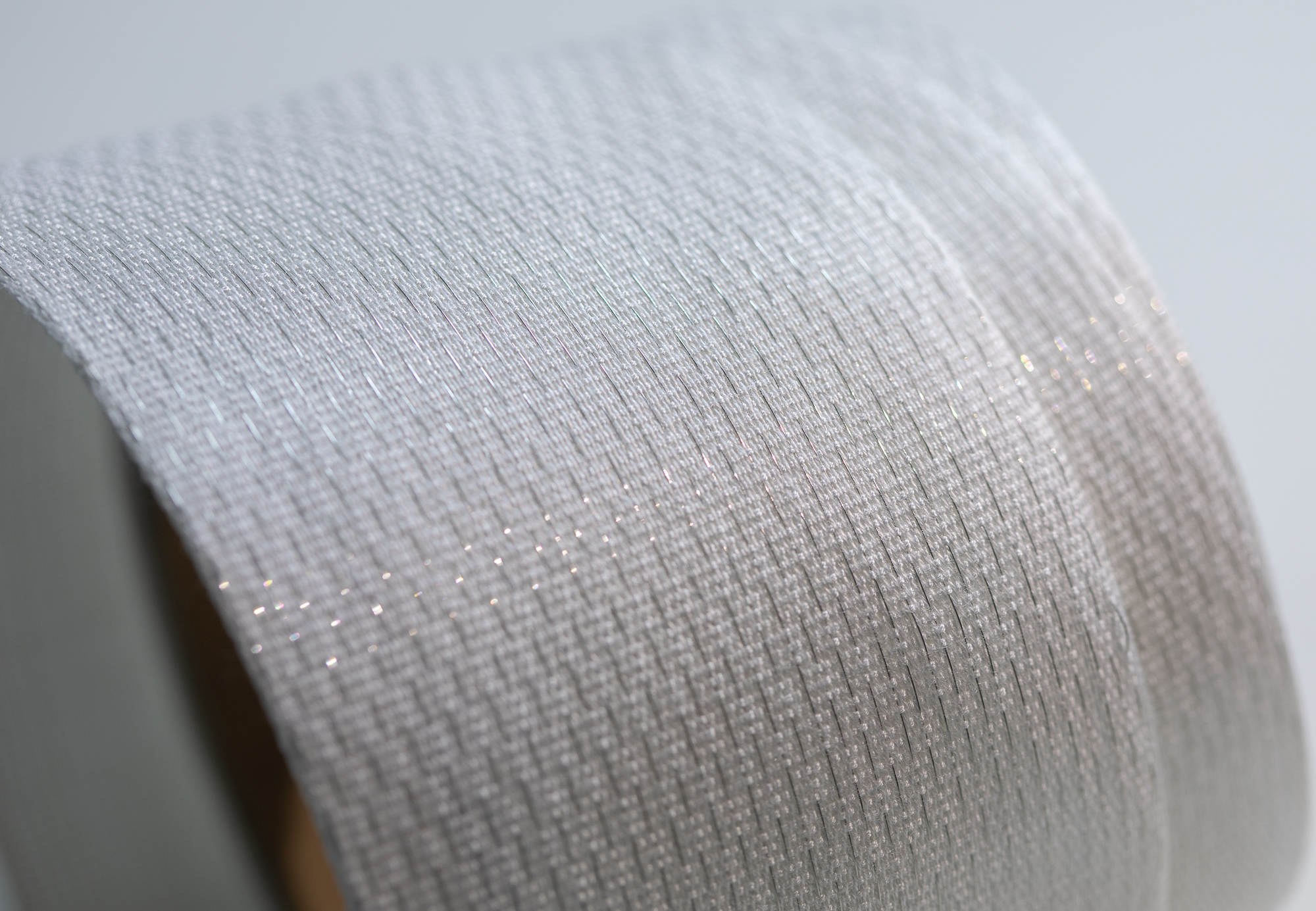

Copper Wire Shielding Tape
Product Code
TSD5020, TSD8020
Construction
Tin-coated copper wires woven with polyester
Applications
Typically used under a corrugated aluminium sheath of HV and EHV power cable.
Characteristics
Effectively conduct heat.
Contribute to the even distribution of electric field under corrugated aluminium sheath.
Excellent bedding.
Proven long-term and short-term stability.
Reach and RoHS compliant.

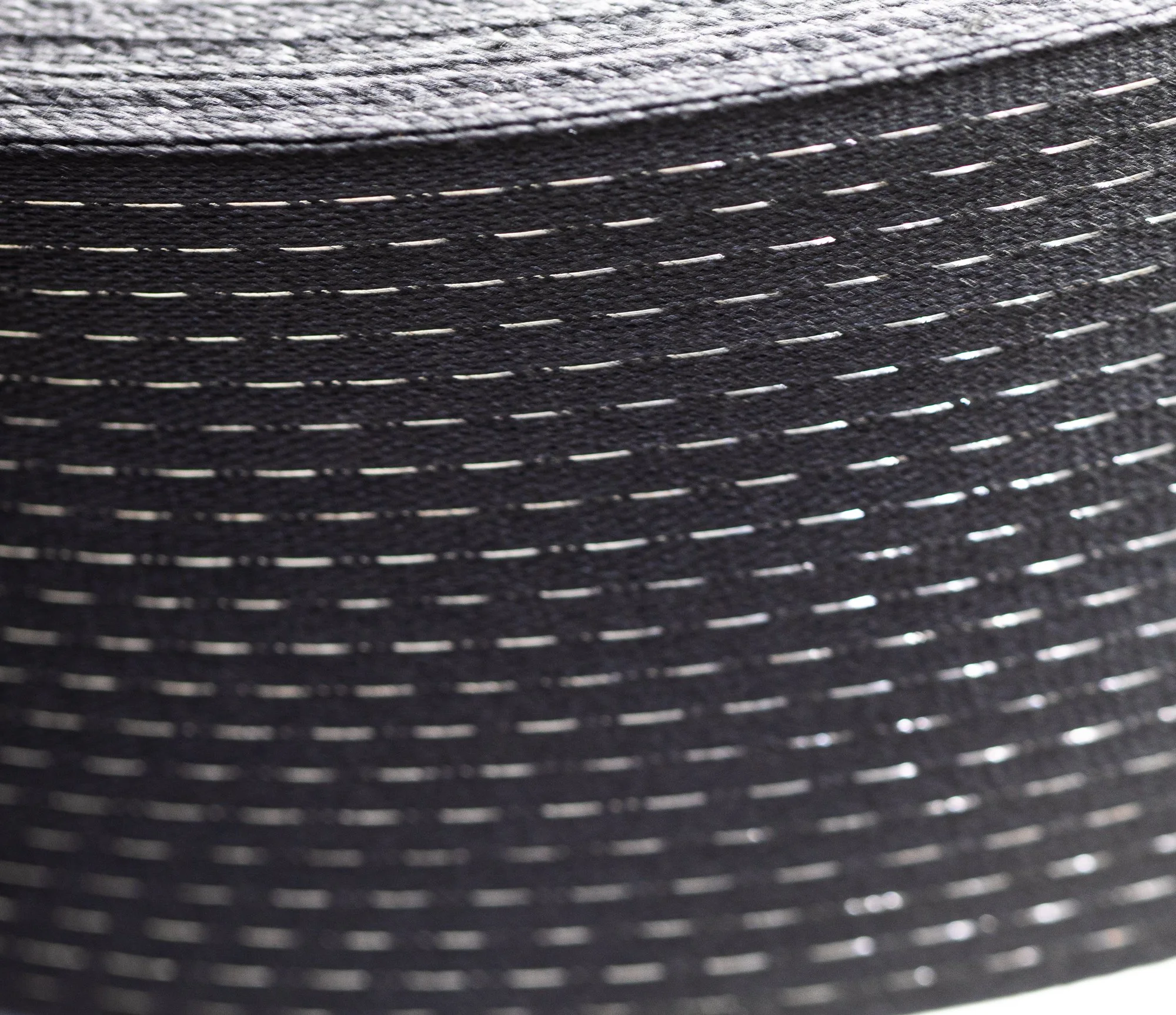

Semi-Conductive Water Blocking Copper Wire Shielding Tape
Product Code
BZTSD5020, BZTSD8020
Construction
Tin-coated copper wires woven with polyester yarn
Semi-conductive water-blocking coating on both sides
Applications
Typically used under a corrugated aluminium sheath of HV and EHV power cable.
Characteristics
Effectively conduct heat.
Contribute to the even distribution of the electric field under the corrugated aluminium sheath.
Excellent bedding.
Proven long-term and short-term stability.
Process-friendly.

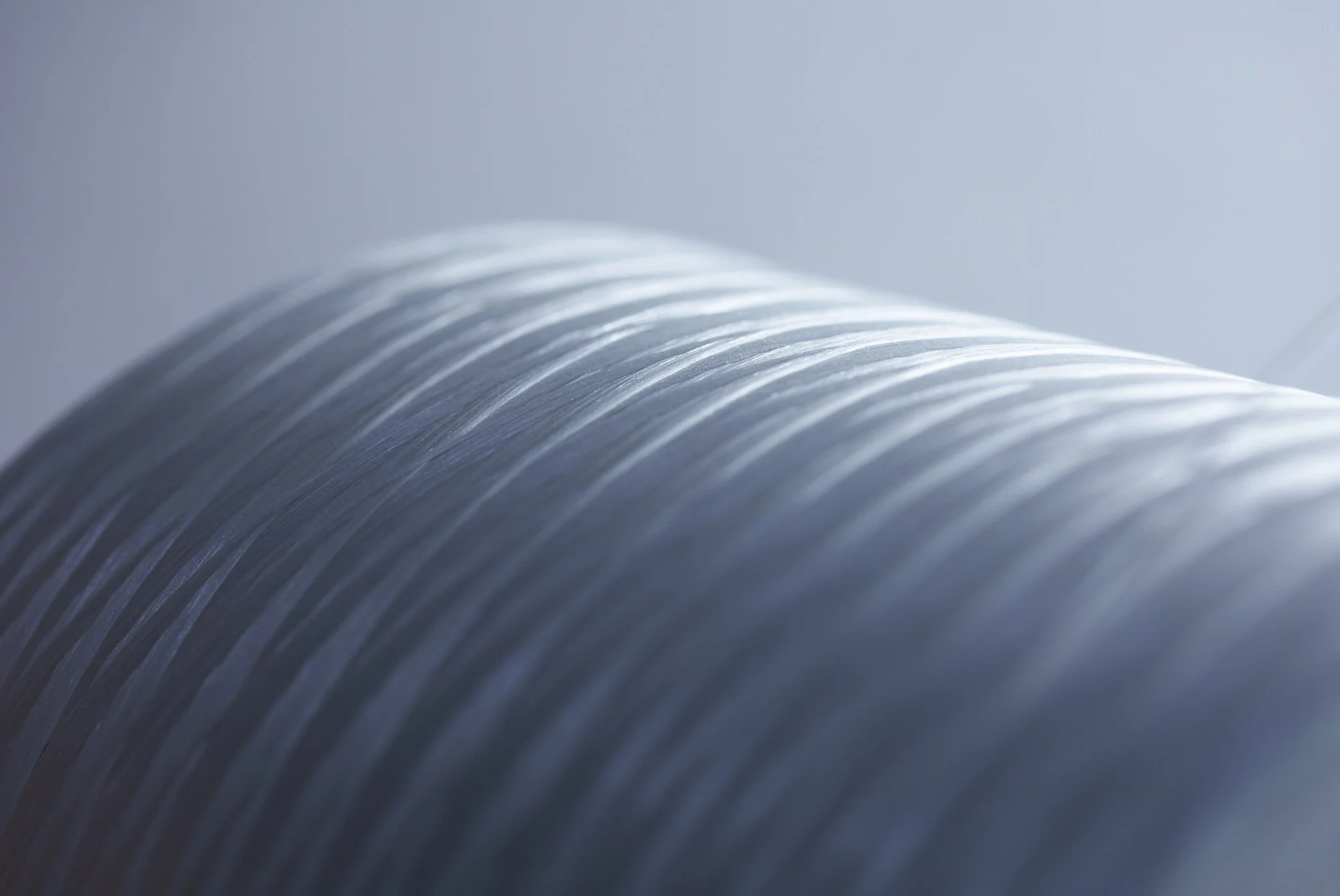

Water Blocking Rope
Product Code
ZSE3, ZSE5, ZSE8
Construction
Slit water blocking tape tightly twisted into a rope
Applications
In power cable for conductor water blocking
Characteristics
Water blocking big space in Milliken conductor
Excellent swelling performance
Excellent Filler
Proven long-term and short-term stability
Engineered Solutions for Your Application
Every application has unique performance and manufacturing requirements. At Tianrong, we work closely with our customers to develop tailored cable material solutions designed to meet specific technical needs.
From customised specifications and material adjustments to application-focused solutions, our experienced team provides the expertise and flexibility needed to deliver the right product for your project.
